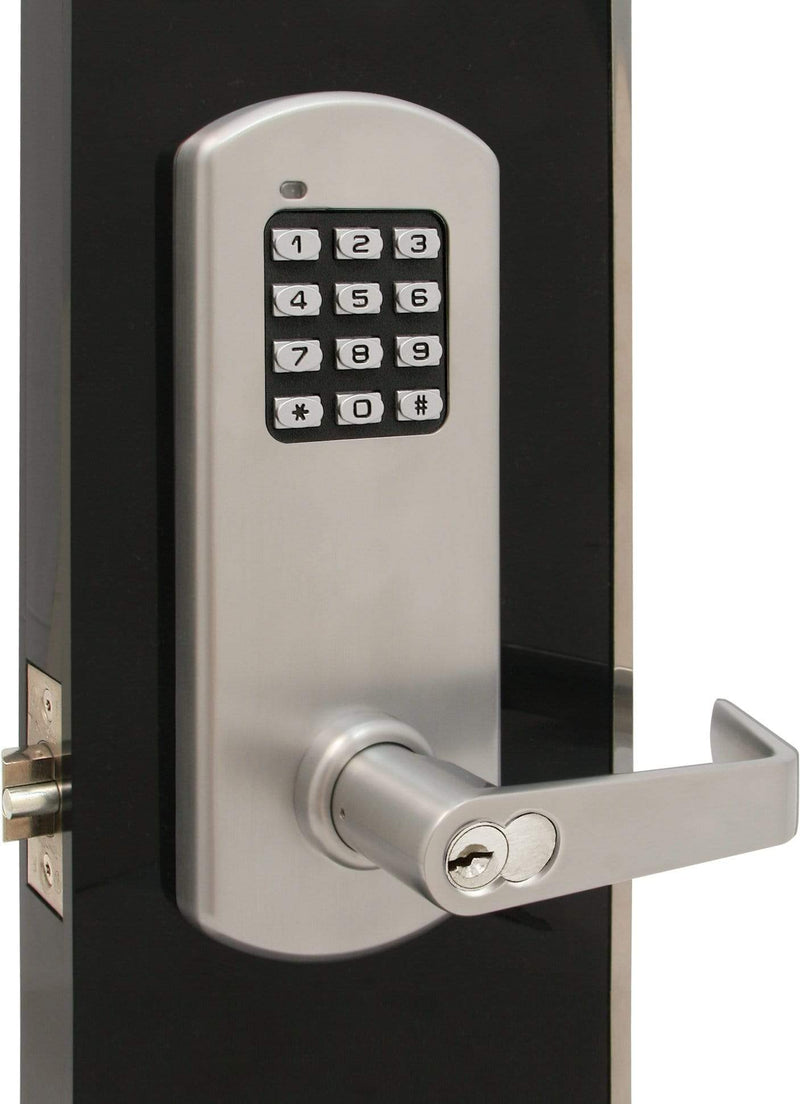

TownSteel XCE Series Grade 1 Push Button Electronic Lock SFIC -26D
Heavy‑Duty TownSteel Electronic Lock for Commercial Security
The TownSteel XCE Series Grade 1 Push Button Electronic Lock is a premium access control solution designed for high‑traffic commercial environments. Manufactured by TownSteel Inc, this lock combines rugged construction, reliable electronics, and SFIC compatibility to deliver professional‑grade security with convenience. Finished in sleek 26D satin chrome, it blends durability with a modern appearance suitable for offices, healthcare facilities, schools, and government buildings.
This push button electronic lock eliminates the need for traditional keys while still supporting Small Format Interchangeable Core (SFIC) systems, making it an excellent choice for facilities already using TownSteel locks or TownSteel hardware across multiple access points.
Programming Features
- 1 Master Code, 90 User Codes,10 Manager Codes, 5 Service Codes
- Powered with 4 AA Alkaline batteries, up to 2 years battery life
- -31° to 151° F (-35° to 66°C) Operating Temperature
Mechanical Specifications
- Door Thickness: 1-3/4”
- Backset: 2-3/4” standard
- Clutched Trim
- Latch bolt: stainless steel, deadlocking, ½”throw
- Faceplate: 1-1/8“x 2-1/4”
- Strike: ASA strike standard, 1-1/4” x 4-7/8”
Cylinder Specifications
- Small format IC (SFIC) 6 or 7 pin - Core not included
Certifications
- ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
- ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
- UL/ULC -- UL 10C 3-hour rated
- BAA - Meets guidelines of the Buy American Act
- ADA - Meets requirements of the Americans with Disabilities Act
- RoHS - Meets requirements of EU RoHS Directive 2002/95/EC
Warranty
- 1-year limited for electronic
- 4-year limited for the finish
- 9-year limited for mechanical
Downloads
Specifications
SKU#: TSL-XCE-2020S-SFIC-26D
weight: 1.0 lb
Download(s):
Vendor: TownSteel Inc
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition:
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function:
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore:
Handing:
Latch:
Grade:
Keys:
Edge Bore:
Door Fitting:
Clutch Function:
Finish: US26D
