Description

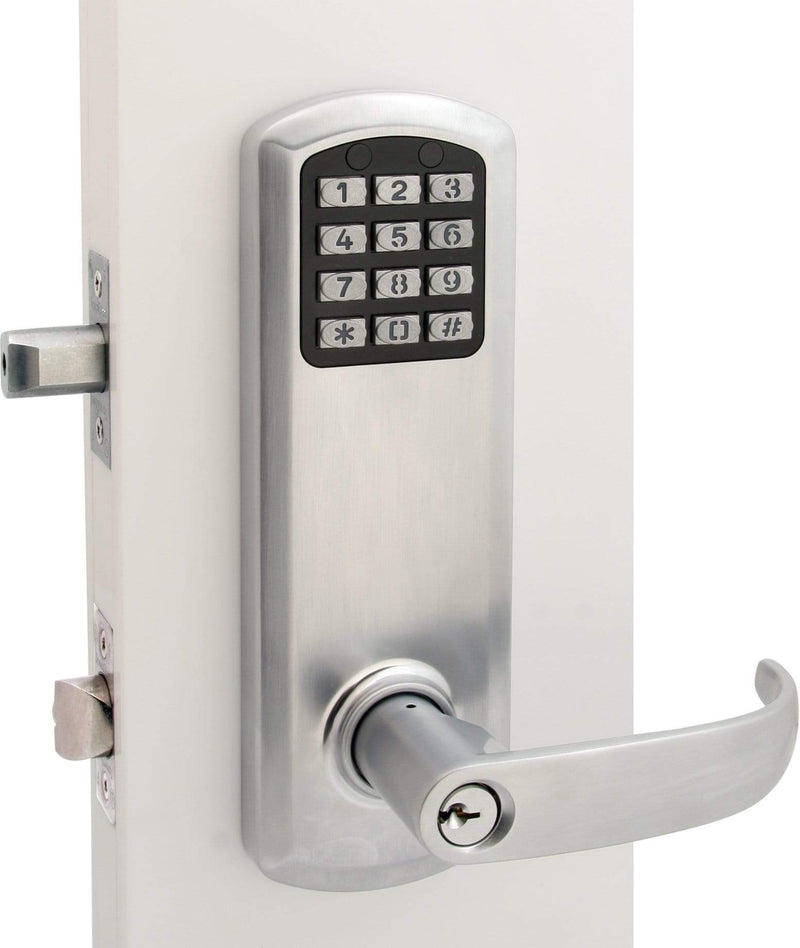

TownSteel E-Genius 2000 Series Grade 1 Interconnected Push Button Electronic Lock 4" On Center-Satin Chrome

The TownSteel E-Genius Grade 1 Electronic Locks are truly one of a kind.

The main issue with Electronic Locks is that you typically have to get a Lever or Deadbolt which cuts your security in half. Not anymore! The E-Genius is an interconnecting lock that does NOT require any extra hole drilling Just 2 standard 2 1/8" Holes that a standard Commercial Door will (should) have!

NOTE:

• You must have either 4" or 5 1/2" on center holes and double-check you are ordering the correct one!
• *All E-Genius Lock backsets are fixed at 2-3/4" If you would like to change this to 2-3/8" please call to have special ordered*

Programming Features

• 100 user ID and user codes
• Code Length: 4 to 6 digits
• Powered with 4 AA Alkaline batteries, up to 1-year battery life
• System Settings: Enable/Disable, Lock Status Indicator, Penalty Time, and more

Mechanical Specifications

• 4" Center to Center Hole (must be exact)
• Door Thickness: 1-3/4”
• Backset: Fixed 2-3/4” standard
• Clutched Trim
• Latch bolt: stainless steel, deadlocking, ½” throw
• Faceplate: 1-1/8“x 2-1/4”
• Strike: ASA strike standard, 1-1/4” x 4-7/8”

Cylinder Specifications

• SC4 Key, 6 pin Schlage C keyway

Certifications

• ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
• ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
• UL/ULC -- UL 10C 3-hour rated
• BAA - Meets guidelines of the Buy American Act
• ADA - Meets requirements of the Americans with Disabilities Act
• RoHS - Meets requirements of EU RoHS Directive 2002/95/EC

Warranty

• 1-year limited for electronic
• 4-year limited for finish
• 9-year limited for mechanical


Downloads

• E-Genius 4" Door Template
• E-Genius 4" Lock Installation Guide
• E-Genius Programming Guide
