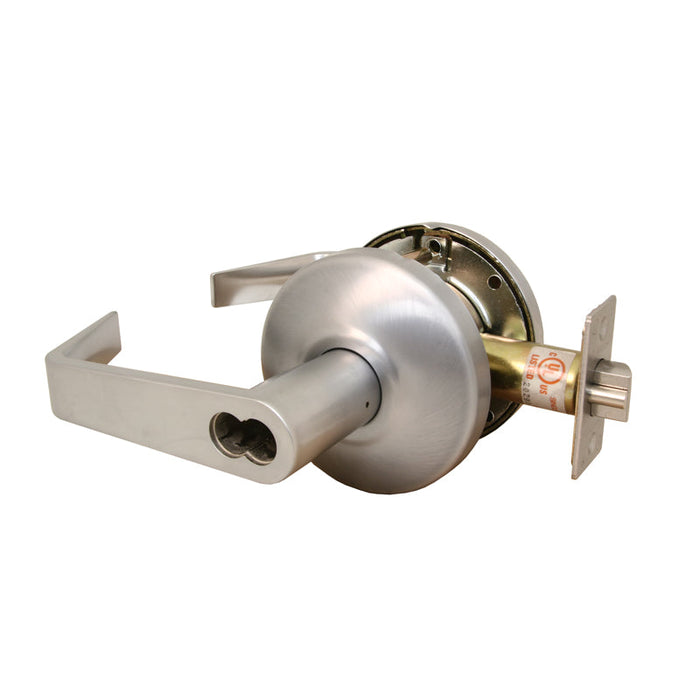

TownSteel CSRC Series | Grade 2 Clutched SFIC Entrance Lever US26D

SKU#: TSL-CSRCI-109-626

weight: 3.0 lb

Download(s): Click to view Grade2_CSRC_series_cutsheet.pdf

Vendor:  TownSteel Inc

Material:

Alternative Key:

Alternative Part Number(s):

Country of Origin: Taiwan

Condition: New

Key Type:

Pin Diameter:

Pins Per Pack:

Pin Length:

Function: Entrance

Programing Instructions :

Code Series :

Buttons:

Emergency Key Included :

Chip :

Reusable :

Battery:

Test Key:

Chipless Key :

Dimensions :

Special Marking (s) :

Replacement Brush:

Replacement Cutters(s) :

Power Supply :

Warranty : 5 Year Mechanical Warranty

Feature(s) :

Keyway:

Strike Plate: ASA Strike 1-1/4" Width x 4-7/8" Height

Standards: ANSI/BHMA Comply with ANSI/BHMA A156.2 Grade 2
UL UL 10C 3-hour rated
BAA Meets requirements of the Buy American Act
ADA Meets requirements of the Americans with Disability Act

Thru Bolt: Yes, Removeable

Cross Bore: 2-1/8"

Handing: Universal, non-handing

Latch: 2-3/4″ Mortise Backset Included

Grade: 2 (Medium Duty)

Keys:

Edge Bore: 1"

Door Fitting: 1-3/4” ~ 2” door standard. Factory preset at 1-3/4”

Clutch Function: Yes

Finish: US26D

Cylinder: Not Included, use any SFIC 6 or 7 pin core
