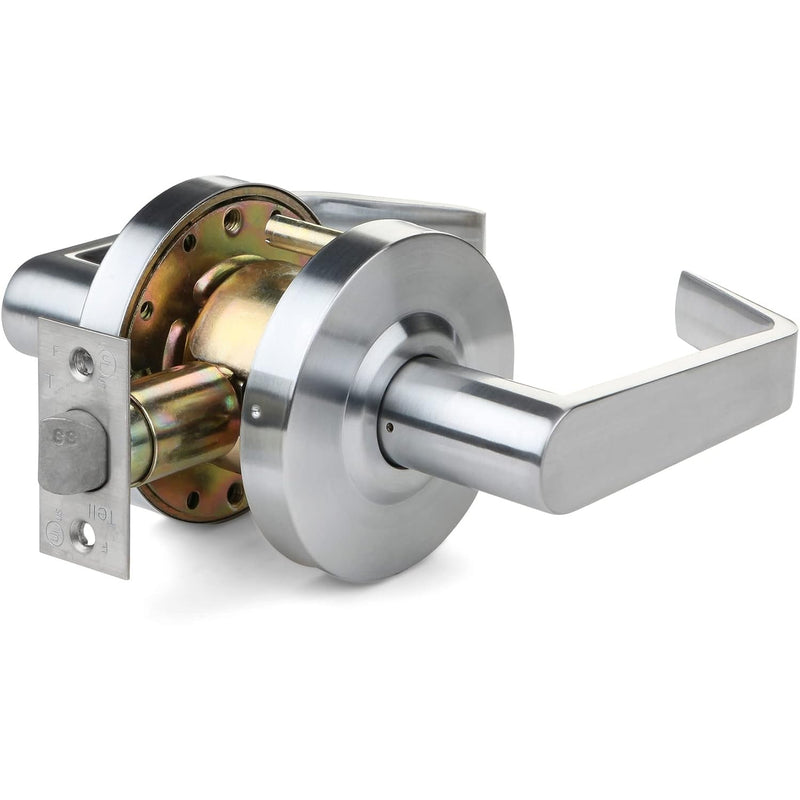

Tell Pro Grade 2 Passage Lever Lock - US26D Finish

Commercial-grade latching for doors that never need to lock. The Tell LC2600 Series passage lever is a hall and closet function, so both levers are always free and the door opens from either side with a push of the lever. There’s no key, button, or cylinder, just a positive latch that holds the door closed.

It uses the same Grade 2 chassis, lever, rose, and US26D satin chrome finish (BHMA 626) as the rest of the LC2600 Series, so hallways and interior doors match the locking hardware throughout the building. It installs in a standard 161 door prep with a non-handed lever.

Why Pros Choose This Lever

• Always free on both sides. Nothing to lock, lose, or rekey.
• Positive latching. Holds doors closed, which is required on fire-rated openings and corridor doors.
• Matches the full LC2600 line. Same lever, rose, and finish as the entry, storeroom, classroom, and office functions.
• Commercial durability. ANSI/BHMA A156.2 Series 4000, Grade 2, tested to 400,000 cycles, far beyond residential passage sets.
• UL/ULC listed for 3-hour fire doors.
• ADA compliant (ANSI A117.1).
• Non-handed lever. One SKU covers left- and right-hand doors.
• Limited lifetime warranty from Tell Manufacturing.

Passage Function (75)

Both levers always retract the latch. There is no locking.

Ideal for: hallways and corridors, stairwell doors, closets, break rooms, lobbies, restroom vestibules, and any interior door that should latch but never lock.

FAQ

Does this lever lock?
No. Both levers are always free. For a lockable door, choose the entry, office, classroom, or storeroom function.

Why pay for Grade 2 on a door that doesn’t lock?
Passage doors often get the most traffic in a building. Residential passage sets wear out quickly under commercial use and usually aren’t fire rated. This lever is rated to 400,000 cycles and approved for 3-hour fire doors.

Will it match my other Tell locks?
Yes. It uses the same Cortland lever, rose, and US26D finish as the rest of the LC2600 Series.

Is it rated for fire doors?
Yes. It is UL/ULC listed for 3-hour fire-rated openings.
