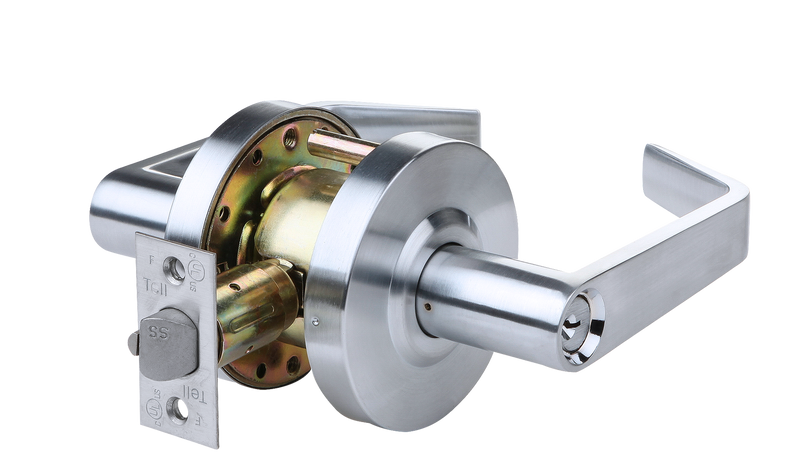

Tell Pro Grade 2 Entrance Lever Lock - US26D Finish
Built for doors that get used all day. The Tell LC2600 Series entry lever lock is an ANSI Grade 2 cylindrical lock rated to 400,000 cycles, made for offices, retail, schools, multifamily and light commercial buildings. Its US26D satin chrome finish (BHMA 626) matches most commercial hardware and resists fingerprints and wear.
It installs in a standard 161 door prep with a removable thru-bolt design, and the lever is non-handed. Locksmiths, installers and facility managers can stock one lock that fits left- or right-hand doors with no handing or extra parts.
Why Pros Choose This Lock
- ANSI/BHMA A156.2 Series 4000, Grade 2. Tested to 400,000 cycles for steady commercial traffic.
- UL/ULC listed for 3-hour fire doors. Approved for rated openings.
- ADA compliant (ANSI A117.1). Lever design meets accessibility requirements.
- Non-handed lever. Fits any door swing, so you carry one SKU instead of two.
- Corrosion-resistant chassis. Steel construction coated in zinc dichromate.
- Rekey-friendly cylinder. 6-pin solid brass, Schlage C keyway, which can be pinned down to 5-pin.
- Limited lifetime warranty from Tell Manufacturing.
Entry Function (81)
The outside lever is locked and unlocked by key or by the inside push-button. The inside lever always allows free exit. Common uses include office entrances, apartment entries, and storage rooms.
Will this fit my existing door?
Yes, if your door has a standard 161 prep: a 2-1/8" bore with a 1" edge bore, 2-3/4" backset, on a door 1-3/8" to 2" thick.
Can I rekey it to match my other locks?
Yes. The cylinder uses the Schlage C keyway, so any locksmith can rekey it to an existing Schlage C system.
Is it rated for fire doors?
Yes. It is UL/ULC listed for 3-hour fire-rated openings.
What's the difference between Grade 1 and Grade 2?
Grade 2 is the standard for light to medium commercial and multifamily use. Grade 1 is for heavy-traffic institutional doors. For most offices and retail entries, Grade 2 is the right value.
Specifications
SKU#: TEL-CL100983
weight: 4.25 lb
Download(s): Click to view lc2600-tell-spec.pdf
Vendor: Tell Mfg.
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin: Taiwan
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Entrance
