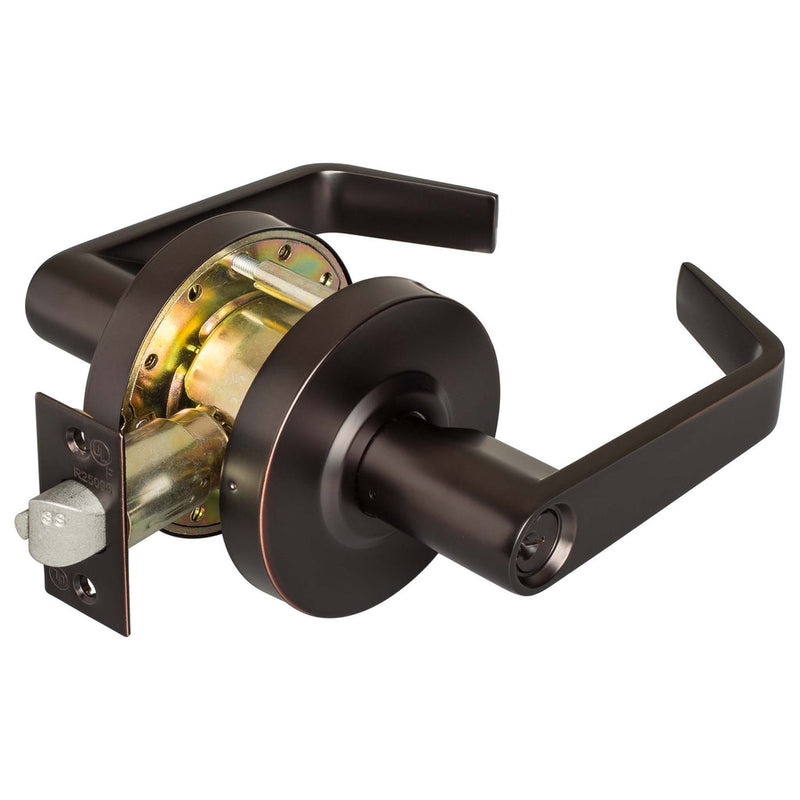

Tell Pro Grade 2 Entrance Lever Lock - US10B Finish
Commercial durability with a warm, dark finish. The Tell LC2600 Series entry lever lock in US10B oil rubbed bronze (BHMA 613) brings Grade 2 performance to doors where satin chrome looks too cold or institutional. It suits wood doors, apartment entries, boutique retail, churches, and hospitality spaces.
Lock it from inside with the push-button, and unlock it from outside with a key. The inside lever always allows free exit. It’s ANSI Grade 2, rated to 400,000 cycles, and installs in a standard 161 door prep with a non-handed lever.
Why Pros Choose This Lock
- Push-button entry function. Lock from inside with the button and open from outside with a key.
- Free egress. The inside lever always opens the door.
- US10B oil rubbed bronze. A dark bronze tone that pairs with wood doors and darker hardware schemes.
- ANSI/BHMA A156.2 Series 4000, Grade 2. Tested to 400,000 cycles.
- UL/ULC listed for 3-hour fire doors.
- ADA compliant (ANSI A117.1).
- Non-handed lever. One SKU covers left- and right-hand doors.
- Rekey-friendly cylinder. 6-pin solid brass, Schlage C keyway, which can be pinned down to 5-pin and master keyed.
- Limited lifetime warranty from Tell Manufacturing.
Entry Function (81)
The outside lever is locked and unlocked by key or by the inside push-button. The inside lever always allows free exit.
Ideal for: apartment and condo entries, office suites, boutique retail, churches, hotels, restaurants, and any entry where a darker finish fits the design.
FAQ
Will this fit my existing door?
Yes, if your door has a standard 161 prep: a 2-1/8" bore with a 1" edge bore, 2-3/4" backset, on a door 1-3/8" to 2" thick.
Will the oil rubbed bronze finish change over time?
US10B is a darkened finish. High-touch areas like the lever can gradually show lighter highlights with heavy use. Choose US26D satin chrome if you want a finish that stays uniform.
Need vandal resistance?
For public-facing or high-abuse doors, choose the Tell Pro Grade 2 Clutch Entrance Lever Lock. Its outside lever spins freely when forced, preventing broken parts.
Can I rekey it to match my other locks?
Yes. The Schlage C keyway rekeys to any existing Schlage C system.
Is it rated for fire doors?
Yes. It is UL/ULC listed for 3-hour fire-rated openings.
Specifications
SKU#: TEL-CL102066
weight: 4.25 lb
Download(s): Click to view lc2600-tell-spec.pdf
Vendor: Tell Mfg.
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin: Taiwan
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Entrance
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore: 2-1/8"
Handing: Universal, non-handing
Latch:
Grade:
Keys: 2
Edge Bore: 1"
Door Fitting:
Clutch Function:
Finish:
Cylinder:
