Description

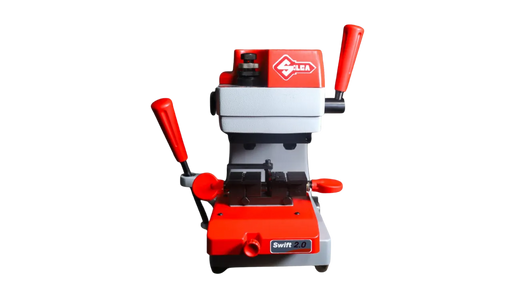

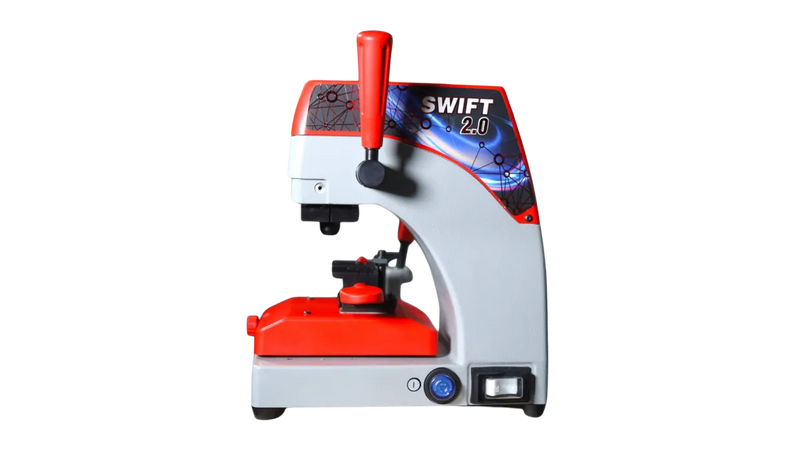

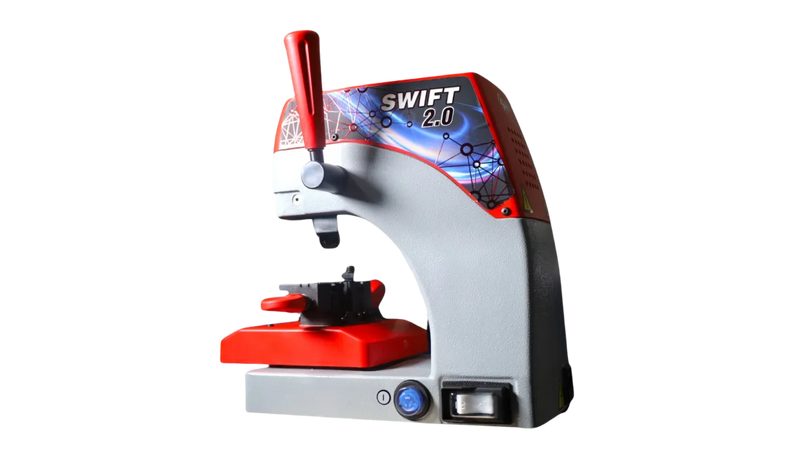

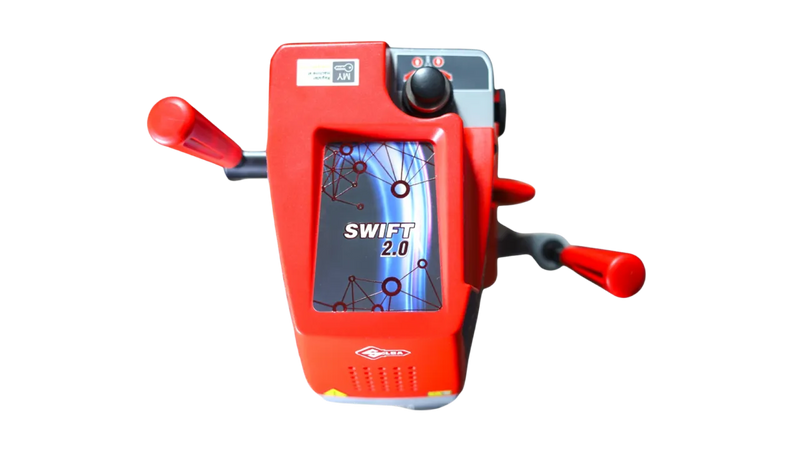

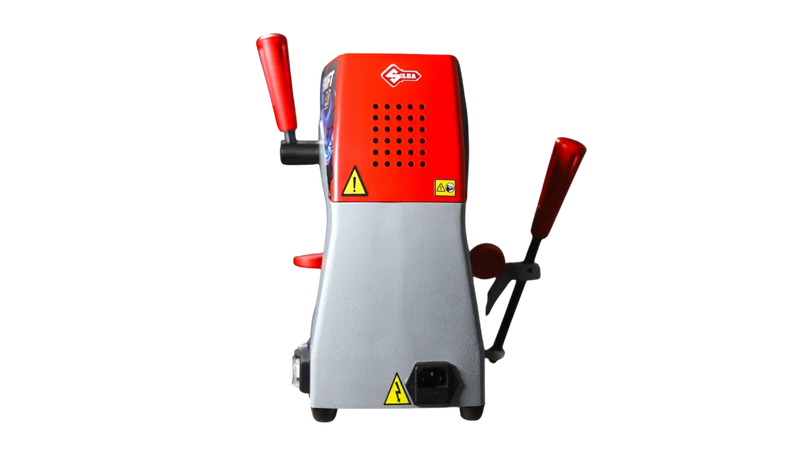

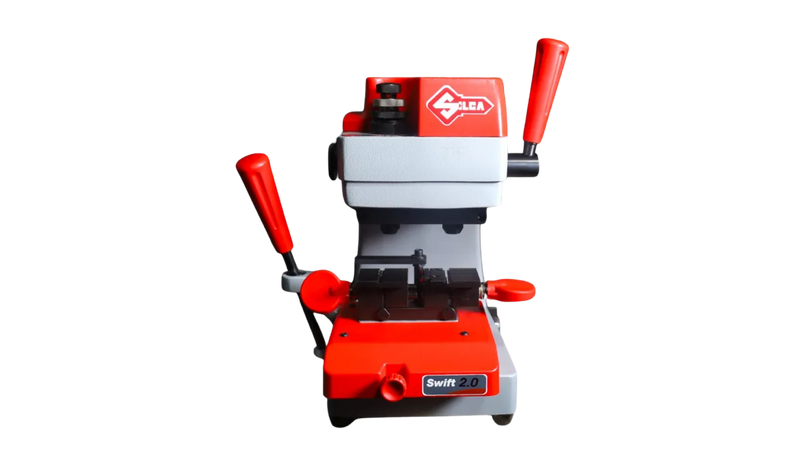

The best mechanical duplicator for laser, dimple, and tubular keys!

Based on the existing Swift Plus platform, the all-new Swift 2.0 features a fresh aesthetic appearance and enhanced carriage design for
smoother operation. Lightweight and compact, this model is ideal for mobile use or where counter space is limited, making it perfect as an entry-level mechanical key cutting machine for duplicating laser, dimple, and tubular keys.


Features Include:

• Built-in accessory tray on top of hood.
• Compact dimensions save workspace on counter or for mobile use.
  Ergonomic grips.
• Ergonomically designed levers provide user comfort and control.
• HSS TiN coated cutters for longevity.
• Improved carriage design results in a better overall user experience during the duplication process.
• LED lighting illuminates the work area.
• Master safety switch with separate cutter motor switch.
• Easily replaceable cutter side jaws.
• Quick calibration of Z-axis for laser keys using calibration bars.
• Safety shield.
• Spring-loaded tracer point and nickel-plated adjustment ring provide accurate calibration for dimple keys.

Technical Data:

• Power Supply: 120V/50-60Hz,1.7 Amp, 240 Watt
• Motor: .2 hp, single phase and speed, 6000 rpm (+/-10%)
• Movement: Three axis via linear bearings
• Carriage Runs: X axis: .95 in (24 mm) Y axis: 2 in (50 mm) Z vertical axis: .87 in (22mm)
