Ilco 044 Speed Semi-Automatic Key Machine 110V Key Machines & Parts Ilco

Help us improve our product images

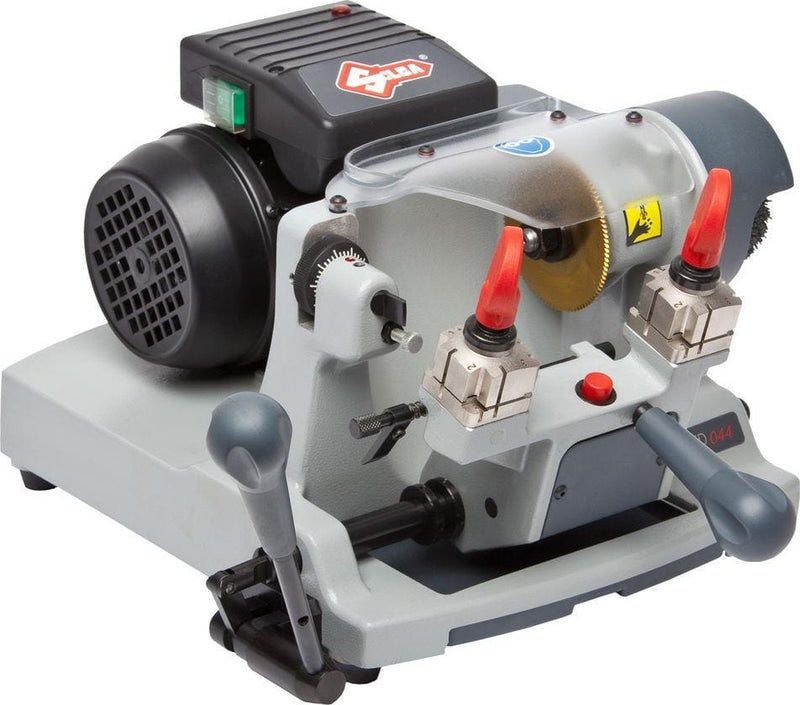

Ilco 044 Speed Semi-Automatic Key Machine 110V

Write A Reviews

Vendor : Ilco
SKU : ILC-044-SPEED-110V
Weight : 28.3 lb
Replacement Brush : BJ0929XXXX, D934958ZR
Replacement Cutters(s) : BC0599XXXX, D746382ZB
Power Supply : 120V-60Hz
Dimensions : W 15.75" x D 18.1" x H 9.8"
Download(s): Click to view speed-series-manual-en.pdf

See full product details

$ 1,357.58 - $ 1,357.58

$ 1,357.58

$ 1,357.58 - $ 1,357.58

$ 1,357.58

Item will be shipped in Approx 2 business weeks.

Only 0 Ilco 044 Speed Semi-Automatic Key Machine 110V are available.

Quantity

variantStock[3154501825] = 0;

$ 1,357.58 - $ 1,357.58

SubTotal : $ 1,357.58

$ 1,357.58 - $ 1,357.58

SubTotal : $ 1,357.58

Description
Specifications
Reviews

Description

The Ilco Speed 044 Semi-Automatic is loaded with features that any user will readily appreciate.

Once keys are loaded, the spring loaded carriage is engaged by the press of a button. The lever is then moved manually to control the carriage movement during the cutting cycle

The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
Wide spacing 3 1/2 (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
Depth tracer system with micro adjustment for precise calibration in increments of .00098 (0.025mm)
TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
Nylon deburring brush
Electro-magnetic main safety switch with a separate cutter motor switch for easy access.
Large transparent cutter safety shield contains chips and provides a storage area for accessories
Large drawer-type swarf (chip) tray under the carriage for easy access
Mounting bracket included for securing the machine to counter
Two year warranty

- Maximum absorbed power: 2.8 Amp, 200 Watt
- Cutter motor: single phase and speed
- Movements: by ball joint on rectified carriage
- Tool Speed: 1350 rpm
- Carriage Runs: 1.65 (42 mm)
- Cutter: TiN coated
- Brush: Nylon, 5/8 (15.87 mm) bristles
- Dimensions: Width: 22.8 (580 mm)
- Depth: 18.1 (460 mm)
- Height: 9.8 (250 mm)
- Weight: 31 lbs.(14 kg)

The Ilco Speed 044 Semi-Automatic is a great fit for high production runs!
