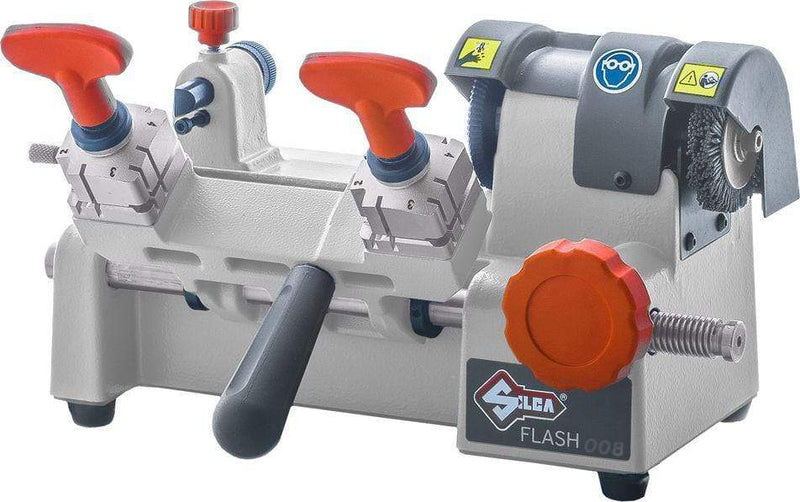

Ilco Flash 008 Key Machine 120V
Ilco Flash 008 Key Machine 120V
The Flash 008 will easily duplicate most edge cut cylinder, cruciform, large bow and long blade keys; including the larger, oversize style automotive keys.
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. To learn more about what each jaw is for, check out this video.
- Smooth jaw rotation by simply twisting into position
- Slotted jaw surfaces accommodate tip stop bars and rigid shoulder gauge design allow for greater accuracy when loading and gauging keys
- Wide spacing 3 1/2 (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration
- AlTiN (Aluminum Titanium Nitride) coated cutter for longer life and oxidation resistance even at temperatures up to 800
- Nylon deburring brush
- Electro-magnetic safety switch with separate cutter motor switch for easy access.
- Mounting bracket included for securing the machine to counter
- Two year warranty
- Power Supply: 120V-60Hz
- Maximum absorbed power: 1.2 Amp, 130 Watt
- Cutter motor: single phase and speed
- Movements: by rectified carriage shaft and rack
- Tool Speed: 2900 rpm
- Carriage Runs: 1.65 (42 mm)
- Cutter: AlTiN coated
- Brush: Nylon
- Dimensions: Width: (310 mm)
- Depth: (240 mm)
- Height: (200 mm)
- Weight: 14 lbs. (6.4 kg)
* Availability of this machine when out of stock is 6-8 business weeks.
Specifications
SKU#: ILC-FLASH-008-120V
weight: 20.0 lb
Download(s): Click to view flash-008-manual-en.pdf
Vendor: Ilco
