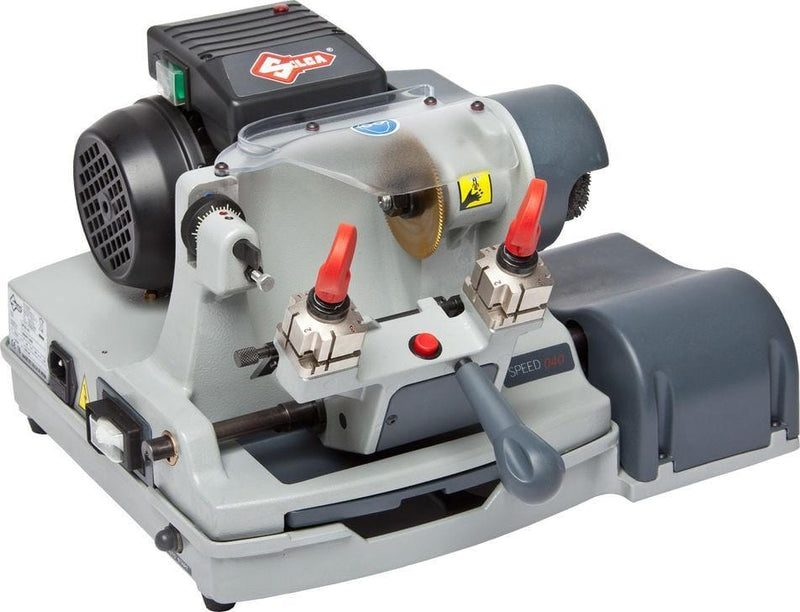

Ilco 040 Speed Automatic/Manual (Dual Function) Key Machine
The Speed 040 is the perfect choice for the store or shop wanting the versatility to choose between automatic or manual operation. This versatile operational mode combined with the modern, open style and many additional features will provide users with years of service.
- The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
- Wide spacing 3 1/2" (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098" (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon de-burring brush
- Electro-magnetic safety switch with a separate cutter motor switch for easy access.
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two year warranty
- Power Supply: 120V-60Hz
- Maximum absorbed power: 2.8 Amp, 200 Watt
- Cutter motor: single phase and speed
- Movements: by ball joint on rectified carriage
- Tool Speed: 1350 rpm
- Carriage Runs: 1.65" (42 mm)
- Cutter: TiN coated
- Brush: Nylon, 5/8" (15.87 mm) bristles
- Dimensions: Width: 19.3 (490 mm)
- Depth: 18.1" (460 mm)
- Height: 11.8" (300 mm)
- Weight: 44 lbs. (20 kg)
Specifications
SKU#: ILC-040-SPEED-110V
weight: 28.9 lb
Download(s): Click to view speed-series-manual-en.pdf
Vendor: Ilco
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Automatic
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply : 120V-60Hz
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore:
Handing:
Latch:
Grade:
Keys:
Edge Bore:
Door Fitting:
Clutch Function:
Finish:
Cylinder:
