CU50A Replacement Cutter for Silca Bravo & Ilco KD50A
The KESA R-CU50A is an aftermarket HSS milling cutter made to replace the Ilco CU50A on Silca Bravo and Ilco KD code machines, at a lower price than the Ilco original.
- Replaces: Ilco CU50A (Ilco part no. D700875ZB); KESA R-CU50A
- Fits: Ilco KD50A, KD71A, KD50C; Silca Bravo II and Bravo III

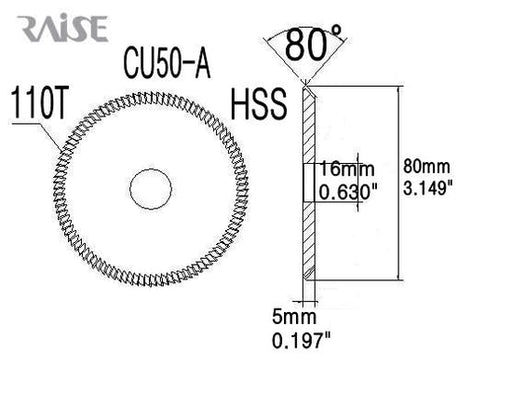

- Size: 80 mm (3.15") outside diameter, 16 mm bore, 5 mm thick, 80° included angle (40° per side); marked "KESA R-CU50A HSS 80x5x16x80°"
- Material: HSS (the Ilco original is cobalt steel)
Prefer the original? The Ilco CU50A is also available.
Specifications
SKU#: KESA-R-CU50A
weight: 0.37 lb
Download(s):
Vendor: KESA
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition:
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function:
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore:
Handing:
Latch:
Grade:
Keys:
Edge Bore:
Door Fitting:
Clutch Function:
Finish:
Cylinder:
Compatible With
Ilco-KD50A
Ilco-KD71A
Ilco-KD50C
Silca-Bravo II
Silca-Bravo III
Silca-Bravo III w/EZ Jaw
Keyline-Dezmo
