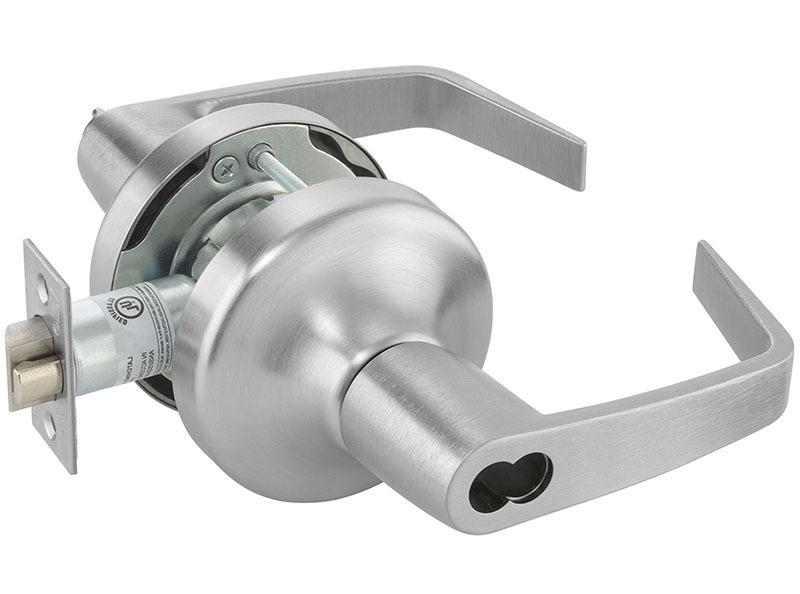

Advantage FK Series | Grade 1 SFIC Storeroom Lever | US26D

Description

Features:

• ANSI Grade 1
• ADA compliant ANSI A117.1 Barrier Free Accessibility
• UL 3 hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated
• CALIFORNIA STATE REFERENCE CODE
  Formerly Title 19,California State Fire Marshal (CSFM) levers return to within 1/2” of door face
• Independent torsion springs
• Fast and easy installation
• Clutch function standard
• Removable through bolt
• Panic proof (inside always free)
• Concealed Mounting Screws
• Lifetime Mechanical Warranty

Specifications:

• Door Fitting: 1-3/8” ~ 2” door thick. Factory preset at 1-3/4”. Thru-Bolt CTC: 2-3/4”.
• Exposed Trim: Wrought brass. Pressure cast zinc lever.
• Lock Chassis: Heavy gauge dichromated steel. Zinc dichromated for corrosion resistance.
• Cylinder: SFIC compatible with BEST profile 6-pins and 7-pins
• Latch: 2 3/4" Backset: 1/2” throw, 7/8” dia. stainless steel latch bolt. 1-1/8” x 2-1/4” faceplate. Floating latch design fits both flat or beveled doors 1/8” in 2”.
• Strike: ASA strike standard
• Handing" Universal, non-handing.
• Screws: Combination screws for both metal and wood doors.
