Description

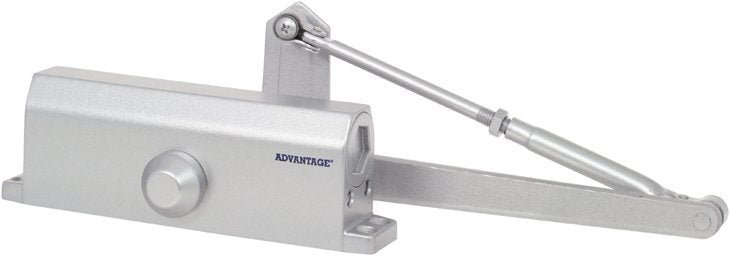

3000 Series Grade 2 Door Closer (Aluminum Color)

Applications For use in office buildings, shopping centers and other commercial buildings. Door Ranges Universal model with fixed power size, size 2 (2000 series) 55-100 lbs (25-45 kgs), size 3 (3000 series) 99-143 lbs (45-65 kgs), size 4 (4000 series) 132-187 lbs (60-85 kgs) ANSI Standards Meets industry standard, ANSI Grade-2, UL Tested & Listed Convenience Standard tri-packed for all application Heavy duty rack and pinion

Availability-7 days

3000 Series Grade 2 Door Closer (Aluminum Color) Specifications

  • Weight : 5.3 lb
  • Feature(s) : Multi-size spring adjustable power size 1-6 Factory preset size 3 Meets ADA
  • Optional Functions : Hold Open Arm (3001, 4001) Drop Plate (See Accessories) Sex-bolts (Metal door mounting)
  • Mounting Hole Pattern : CTC 8-3/16” x 3/4”
  • Screw(s) : Included, Wood screws and machine screws
  • Valves : Dual valves control for Closing speed and Latching speed.
  • Materials : Aluminum alloy body, forged steel arm Heat treated forged steel piston Double Heat treated Steel pinion
  • Grade : 2 (Light Duty)
  • Standards : ANSI Grade 2 UL10C Positive Pressure Rated. Conforms to UBC7-2 (1997). (Uniform Building Code Standard)
  • Warranty : 10-Year Warranty
  • Condition : New
  • Finish : US26D
  • Download(s): Click to view 4000-3000-2000-Series-Specifications_00f79dc9-c7ed-4f70-be4f-6a7ce1fb7afb.pdf
