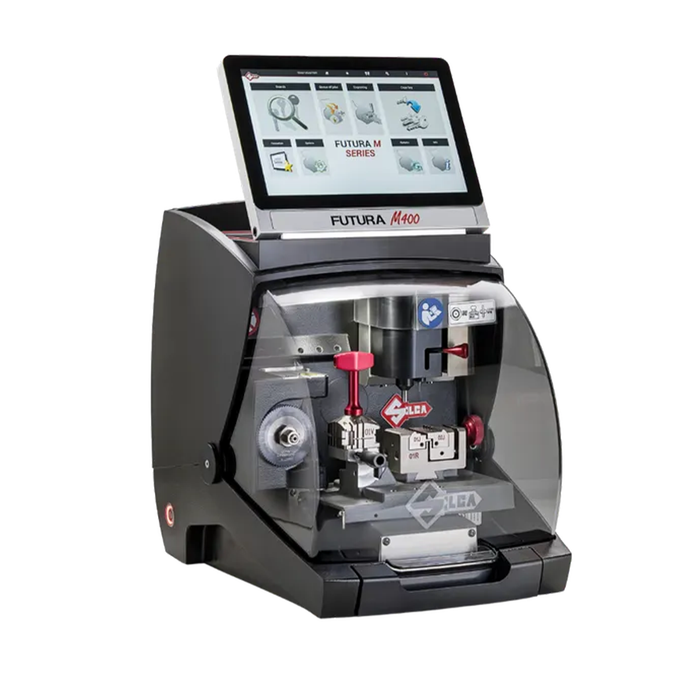

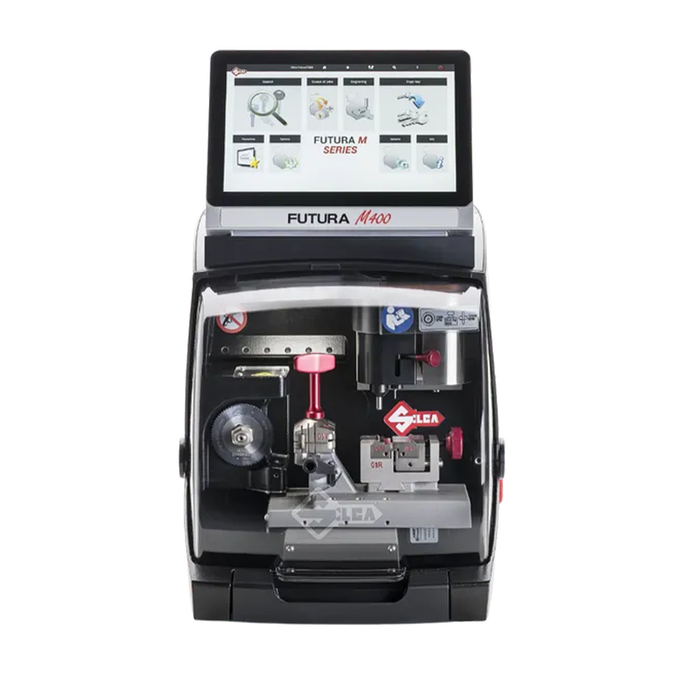

Silca Futura M400 - All-in-One Electronic Key Cutting Machine

Description

The Futura M400 delivers professional-grade precision and versatility in a compact, all-in-one key cutting solution. Perfect for locksmiths and key professionals, it supports both residential and automotive applications, helping you expand your services efficiently and confidently. Connect to MYKEYS Pro for advanced functionality and full database access.

Precision Cutting for Every Key Type

Equipped with a dual cutting station, the Futura M400 can cut flat, cruciform, laser, and dimple keys—all from a single machine. Optional accessories expand compatibility, allowing you to duplicate nearly any residential or automotive key on the market.

Key Features

• Dual cutting station for maximum versatility
• Integrated industrial-grade monitor for seamless operation
• Long-life WIDIA cutter for durable performance
• Upgraded motor driver for quieter operation
• User-friendly software interface
• Integrated residential and automotive key databases
• Automatic calibration and optical decoding for flat keys
• Stable internet connectivity for MYKEYS Pro

Key Compatibility

• Flat keys
• Cruciform keys
• Laser keys
• Dimple keys
• Residential keys
• Automotive keys
• Optional accessories available for expanded key compatibility

Technical Specifications

• Cutter Motor (flat cuts): 24V DC
• Cutter Motor (dimple/laser cuts): 24V DC
• Cutter (flat/prismatic cuts): U01W, WIDIA hard metal with coating
• Cutter (dimple cuts): 01D, HSS super rapid steel
• Cutter (laser cuts): 01LW, carbide, AlCrN coated
• Tool Speed: Prismatic Cutter: 1,585 RPM | Dimple/Laser Cutter: 12,100 RPM
• Power Supply: Machine: 24V DC – 5.5A – 130W | Power Pack: 90–264V AC – 50/60Hz – 220W
• Clamps: Flat: 01V removable, four universal sides | Dimple/Laser: 01R removable, interchangeable jaws (01J & 02J)
• Movement: 3-axis with step motors on rectified roller guides (X: 30mm, Y: 50mm, Z: 27mm)
• Dimensions: W 318mm × D 413mm × H 530mm (display open) / H 365mm (display closed)
• Weight: 20 kg (44.1 lbs)

A complete solution for locksmiths, delivering professional performance for every key type.
