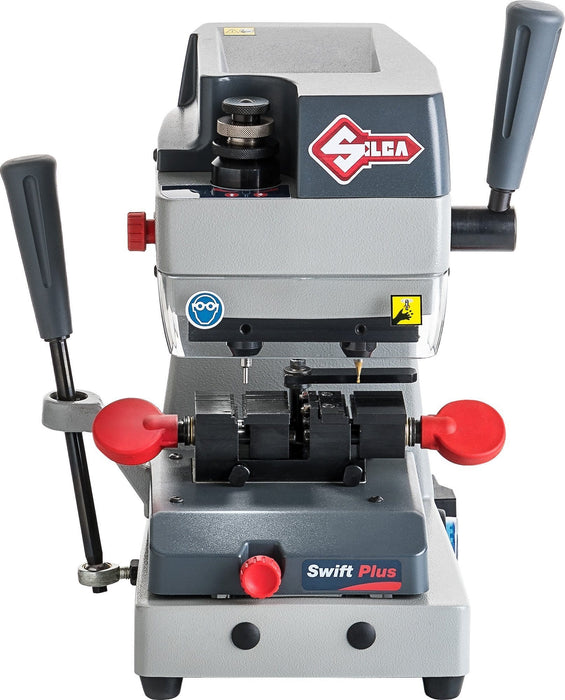

The Swift Plus is an economical, entry level mechanical key cutting machine for the duplication of laser, dimple, and tubular keys. Lightweight and compact, this model is ideal for mobile use or where counter space is limited.
An integrated work light allows cuts to be clearly seen and traced. The lockable carriage prevents unwanted movements during transport. A replaceable jaw surface allows for quick maintenance and increased longevity. Quality construction and resistant materials ensure reliable and quality cutting results for years.
Features
Tubular key installation made simple thanks to a positioning device and alignment bar on the jaw.
Three Axes movement via rods and bushings for smooth operation and precision

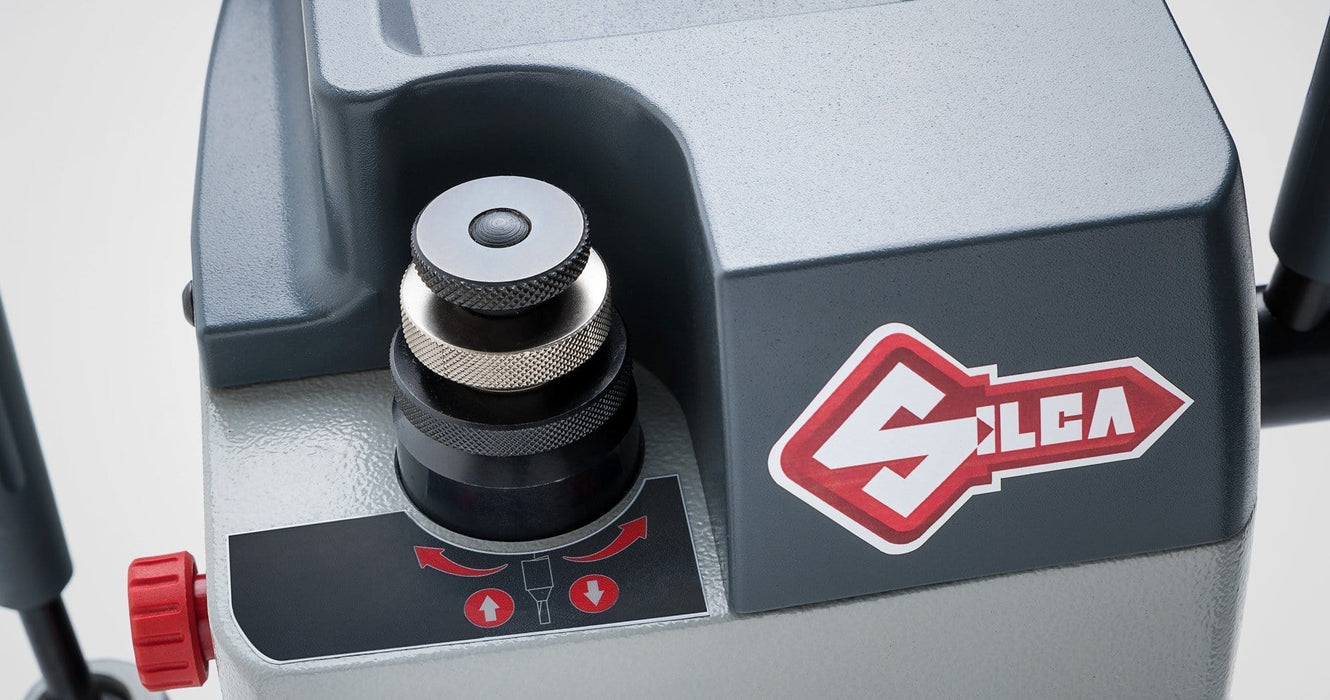

Spring loaded tracer point and nickel-plated adjustment ring provide accurate calibration of dimple keys
Quickly calibrate the Z-axis for laser keys using the “L” and “R” calibration bars provided
Adapters for narrow blade keys used on VW®/Audi®/Saab® included
Lockable carriage/table for dimple keys
Replaceable jaw surface on cutter side
Cutters are TiN plated for wear resistance and longevity
Transparent safety shield minimizes exposure to chips and moving parts
Master Safety Switch with separate cutter motor switch.
Bright, LED light illuminates work area

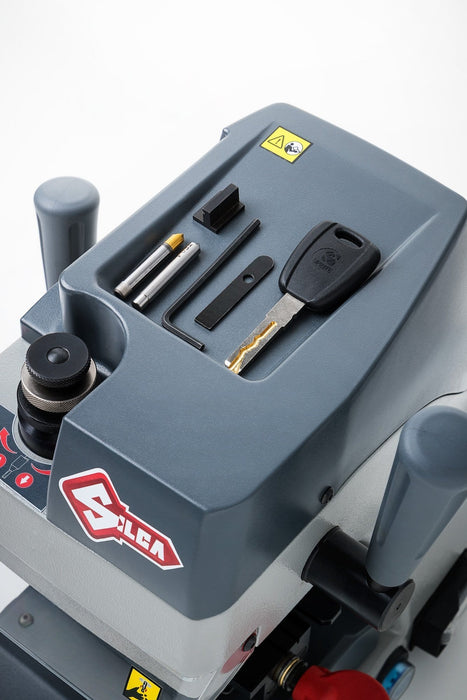

Built-in accessory tray on hood
Small footprint, lightweight and compact
Cutters and tracers included for Laser, Tubular, and Dimple Keys
Power Supply: 120V/50-60Hz, 1.7 Amp, 240 Watt Motor: .2 hp, single phase and speed, 6000 rpm (+/-10%) Movement: Three axes via rod and bushings Carriage Runs: X axis: .95” (24mm), Y axis: 2” (50mm), Z vertical axis: .87” (22mm)
