Advantage FK Series | Grade 1 LFIC Entrance Lever

Write A Reviews

Vendor : PHG
SKU : PHG-500FK-CT-US26D-ICS
Weight : 4.0 lb
Latch : Mortise Backset Included
Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
Grade : 1 (Heavy Duty)
Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code

See full product details

$ 119.84 - $ 123.64

$ 119.84

$ 119.84 - $ 123.64

$ 119.84

Only 3 Advantage FK Series | Grade 1 LFIC Entrance Lever are available.

Quantity

variantStock[31627886362713] = 3; variantStock[31627886395481] = 3;

$ 119.84 - $ 123.64

SubTotal : $ 119.84

$ 119.84 - $ 123.64

SubTotal : $ 119.84

Description
Specifications
Compatible With
Reviews

Description

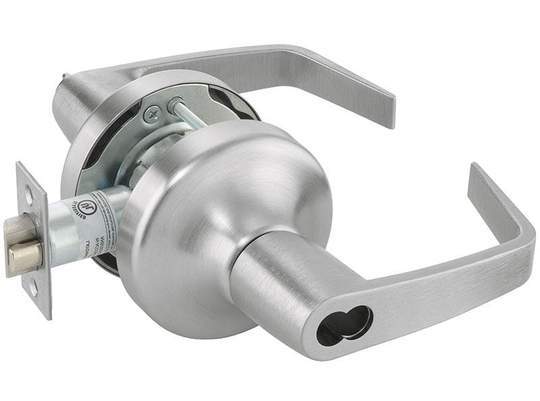

Advantage FK Series | Grade 1 LFIC Entrance Lever

Schlage profile LFIC Cylinder Housing

Features

Independent torsion springs
Fast and easy installation
Clutch function standard
Removable through bolt
Panic proof (inside always free)
Concealed Mounting Screws

Specifications:

Door Fitting: 1-3/8″ ~ 2″ door thick. Factory preset at 1-3/4″. Thru-bolt CTC: 2-3/4″
Exposed Trim: Wrought brass. Pressure cast zinc lever
Lock Chassis: Heavy gauge dichromate steel. Zinc dichromate for corrosion resistance
Latch: UL listed, 1/2″ throw, 7/8″ dia. stainless steel latch bolt - faceplate 1-1/8″ X 2-1/4″ Floating latch design fits both flat or beveled doors 1/8″ in 2″
Strike: ASA strike standard (9109). T-Strike optional (9106)
Handing: Universal, non-handing
Screws: Combination screws for both metal and wood doors.

Availability-7 days

Advantage FK Series | Grade 1 LFIC Entrance Lever Specifications

SKU #:
Vendor : PHG

Weight : 4.0 lb
Latch : Mortise Backset Included
Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
Grade : 1 (Heavy Duty)
Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
Thru Bolt : Yes, Removeable
Warranty : Lifetime Mechanical Warranty
Cross Bore : 2-1/8"
Edge Bore : 1"
Handing : Universal, non-handing
Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
Cylinder : Not Included, use any Schlage Type LFIC Core
Alternative Part Number(s) : 500FK-CT-US26D
Condition : New
Function : Entrance
Finish : US26D
