Grade 1 - Single Deadbolt LFIC Grade 1 Locks PHG
Feedback Help us improve our product images

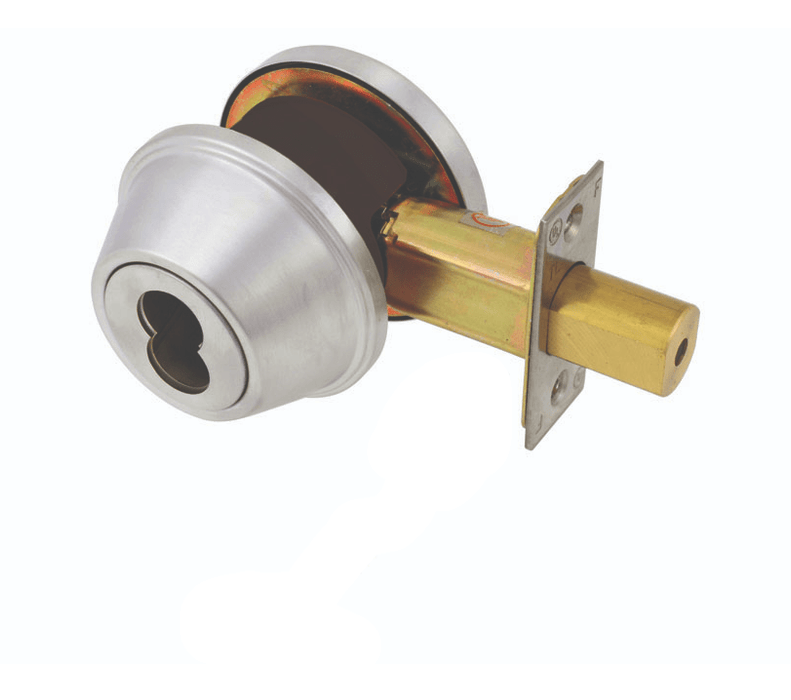

Advantage LM Series | Grade 1 LFIC Single Deadbolt

Write A Reviews
  • Vendor : PHG
  • SKU : PHG-200LM-US26D-ICS
  • Weight : 4.0 lb
  • Latch : UL Listed 1” throw solid brass deadbolt latch with hardened steel rod insert. 1” x 2-1/4” faceplate adjustable mortise deadbolt latch (L90A0T) with faceplate adapter
  • Strike Plate : Standard deadbolt strike (9121) 1-1/8” x 2-3/4”, and 1/8” wood frame reinforcer package (9221)
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
See full product details
$ 76.70 - $ 80.15
$ 76.70
$ 76.70 - $ 80.15
$ 76.70
In Stock
Color: US26D

Only 1 Advantage LM Series | Grade 1 LFIC Single Deadbolt are available.

variantStock[31627974049881] = 1; variantStock[31627974082649] = 2;
$ 76.70 - $ 80.15
SubTotal : $ 76.70
$ 76.70 - $ 80.15
SubTotal : $ 76.70

Description

Advantage LM Series | Grade 1 LFIC Single Deadbolt

Applications For offices, schools, hospitals, apartments, hotel/motel and other public buildings.

  • Schlage Profile LFIC cylinder housing
  • Concealed mounting screws
  • Fast and easy installation
  • ANSI GRADE 1 Standards meets or exceeds the requirement of ANSI/BHMA A156.36 - 2010

Specifications

  • Door Fitting:  1-9/16″ ~ 2″ door thick. 2-1/4″ available
  • Latch: UL listed, 1″ throw solid brass deadbolt latch with hardened steel rod insert
  • Strike: Standard deadbolt strike (9121), and 1/8″ wood frame reinforcer package (9221)
  • Screws: Combination screws for both metal and wood doors

Availability-7 days

Advantage LM Series | Grade 1 LFIC Single Deadbolt Specifications

  • Weight : 4.0 lb
  • Latch : UL Listed 1” throw solid brass deadbolt latch with hardened steel rod insert. 1” x 2-1/4” faceplate adjustable mortise deadbolt latch (L90A0T) with faceplate adapter
  • Strike Plate : Standard deadbolt strike (9121) 1-1/8” x 2-3/4”, and 1/8” wood frame reinforcer package (9221)
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI Grade 1 ANSI/BHMA A156.2-2003 3 Hours Fire Rating UL10C/UBC 7-2(1997) Positive Pressure Rated ADA Compliant ANSI A117.1 Barrier Free Accessibility BHMA Certified Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code
  • Warranty : Lifetime Mechanical Warranty
  • Cylinder : Not Included, use any Schlage Type LFIC Core
  • Clutch Function : No
  • Alternative Part Number(s) : 200-LM-ICS-US26D
  • Condition : New
  • Finish : US26D
