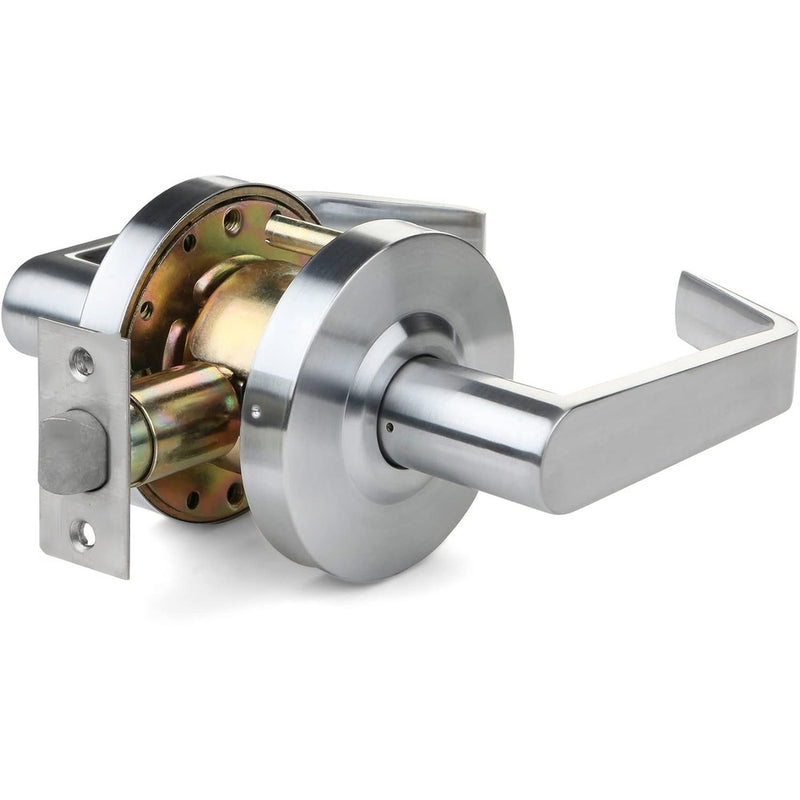

Tell Pro LC2600 Series Grade 2 Cortland Exit Lever Lock - US26D Finish
A Grade 2 Cortland lever built to commercial standards. The Tell LC2600 Series LC2680 exit lever (Exit Latch 80, ANSI F89) is finished in US26D satin chrome (BHMA 626).
The inside lever always retracts the latch for free egress. The outside lever is rigid at all times, and there is no key cylinder.
Why Pros Choose This Lever
- ANSI/BHMA A156.2 Series 4000, Grade 2. Tested to 400,000 cycles.
- UL/ULC listed for 3-hour fire doors.
- ADA compliant (ANSI A117.1).
- Non-handed Cortland lever.
- Removable thru-bolts for a solid install.
- Fits standard 161 door prep. 2-1/8" bore, 1" edge bore.
- Limited lifetime warranty from Tell Manufacturing.
Specifications
- Lever: Cortland (CTL), 4-15/16" long, 3-1/16" projection
- Rose: 3-1/4" diameter
- Door thickness: 1-3/8" to 2"
- Latch: 2-3/4" backset, 1/2" stainless steel throw, 1-1/8" x 2-1/4" square corner faceplate
- Strike: ASA 1-1/4" x 4-7/8"
Ideal for: exit-only doors, stairwells and back-of-house doors that must let people out but not in from the outside.
Equal To (Cross-Reference)
Tell lists this series as equal to: Cal-Royal SL, CSL, XP & ALC, Falcon W500 series, Hager 3500 series, Corbin CL3800 series, Sargent 65 series, Schlage AL series, Yale 4600LN series.
FAQ
Can it be opened from the outside?
No. The outside lever is always rigid and there is no key. Use the entrance or storeroom function if you need outside access.
Does it use a key?
No. This function has no keyed cylinder.
Will it fit my existing door?
Yes, if the door has a standard 161 prep (2-1/8" bore, 1" edge bore) and is 1-3/8" to 2" thick.
Specifications
SKU#: TEL-CL102600
weight: 4.25 lb
Download(s): Click to view lc2600-tell-spec.pdf
Vendor: Tell Mfg.
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin: Taiwan
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Exit
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore: 2-1/8"
Handing: Universal, non-handing
Latch:
Grade:
Keys:
Edge Bore: 1"
Door Fitting:
Clutch Function:
Finish: US26D
