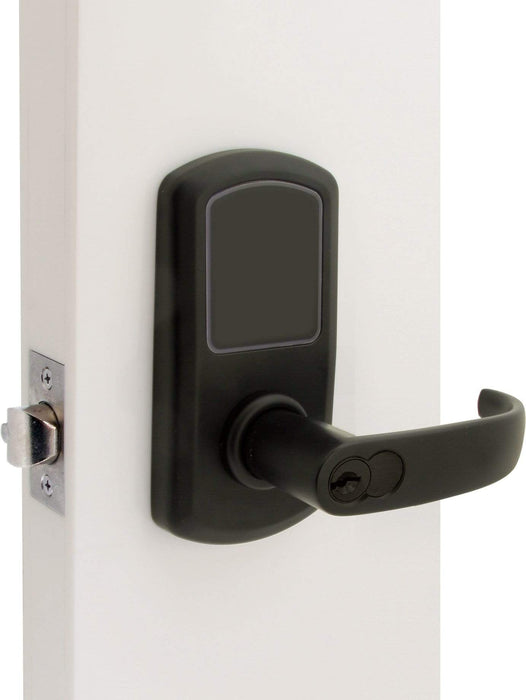

TownSteel E-Elite 5000 Series Grade 1 Touch Screen Electronic Lock SFIC w/WiFi -Flat Black

The TownSteel E-Elite Grade 1 Electronic Locks are truly one of a kind.

Why? Because they don't require ANY extra drilling in the door! Just a standard 2 1/8" Hole with through bolts like standard Commercial Doors will (should) have!

Programming Features

• 400 user codes interchangeable with RFID keycards/ stickers
• Code Length: 6 to 10 digits, with anti-pry
• Powered with 4 AA Alkaline batteries, up to 1 year battery life
• System Settings: Passage Mode, Verification Mode, and Sound Adjustment
• RF (wifi) Technology through our mobile app (download in the play store)
• Must also purchase this gateway

Mechanical Specifications

• Door Thickness: 1-3/4”
• Backset: 2-3/4” standard
• Clutched Trim
• Latch bolt: stainless steel, deadlocking, ½”throw
• Faceplate: 1-1/8“x 2-1/4”
• Strike: ASA strike standard, 1-1/4” x 4-7/8”

Cylinder Specifications

• Small format IC (SFIC) 6 or 7 pin - Core not included

Certifications

• ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified
• ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements
• UL/ULC -- UL 10C 3-hour rated
• BAA - Meets guidelines of the Buy American Act
• ADA - Meets requirements of the Americans with Disabilities Act
• RoHS - Meets requirements of EU RoHS Directive 2002/95/EC

Warranty

• 1-year limited for electronic
• 4-year limited for finish
• 9-year limited for mechanical


Downloads

• E-Elite Door Template
• E-Elite Lock Installation Guide
• E-Elite 5000 Programming Guide
