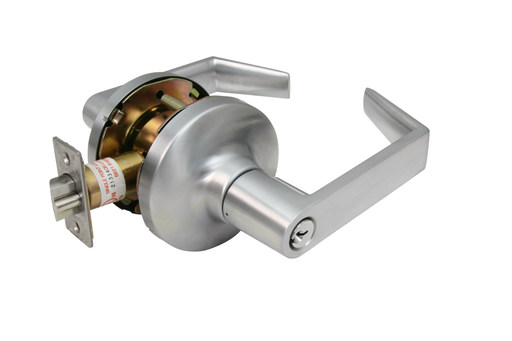

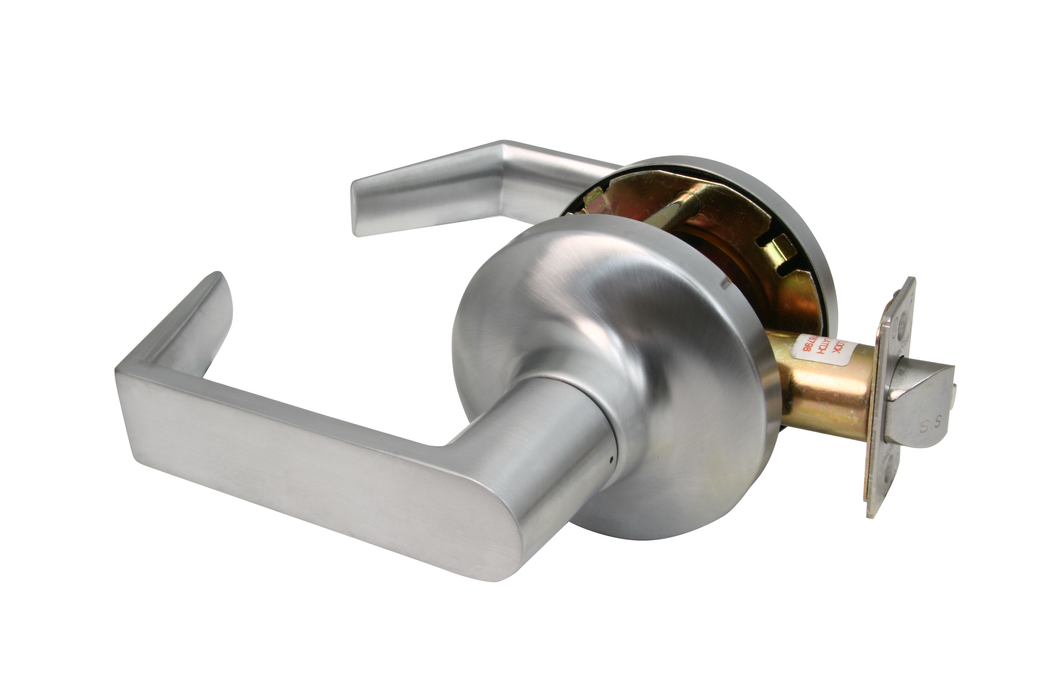

TownSteel CDC Series | Grade 1 Clutched Storeroom Lever US26D

SKU#: TSL-CDC-86-626

weight: 3.0 lb

Download(s): Click to view Grade1_CDC_series_cutsheet.pdf

Vendor:  TownSteel Inc

Material:

Alternative Key:

Alternative Part Number(s):

Country of Origin: Taiwan

Condition: New

Key Type:

Pin Diameter:

Pins Per Pack:

Pin Length:

Function: Storeroom

Programing Instructions :

Code Series :

Buttons:

Emergency Key Included :

Chip :

Reusable :

Battery:

Test Key:

Chipless Key :

Dimensions :

Special Marking (s) :

Replacement Brush:

Replacement Cutters(s) :

Power Supply :

Warranty : 5 Year Mechanical Warranty

Feature(s) :

Keyway:

Strike Plate: ASA Strike 1-1/4" Width x 4-7/8" Height

Standards: ANSI/BHMA A 156.2
Grade 1 certified
Series 4000
UL UL 1 0C 3-hour rated
BAA Meets requirements of the Buy American Act
ADA Meets requirements of the Americans with Disabilities Act

Thru Bolt: Yes, Fixed

Cross Bore: 2-1/8"

Handing: Universal, non-handing

Latch: Mortise Backset Included: 2-3/4″
Latch Faceplate: 1-1/8″ X 2-1/4″
UL listed
Combination screws for both metal and wood doors

Grade: 1 (Heavy Duty)

Keys: 2

Edge Bore: 1"

Door Fitting: 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”

Clutch Function: Yes

Finish: US26D

Cylinder: Solid brass SC4 6-pin
You can replace the cylinder with any K001 Cylinder
