TownSteel CDC Series | Grade 1 Clutched Passage Lever US26D Grade 1 Lever TownSteel Inc
Feedback Help us improve our product images

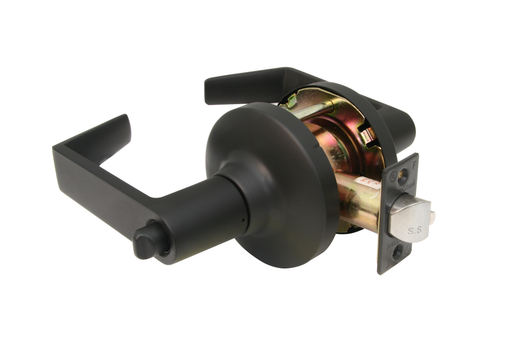

TownSteel CDC Series | Grade 1 Clutched Passage Lever US26D

Write A Reviews
  • Vendor : TownSteel Inc
  • SKU : TSL-CDC-75-626
  • Weight : 3.0 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI/BHMA A 156.2 Grade 1 certified Series 4000 UL UL 1 0C 3-hour rated BAA Meets requirements of the Buy American Act ADA Meets requirements of the Americans with Disabilities Act
  • Download(s): Click to view Grade1_CDC_series_cutsheet.pdf
See full product details
$ 93.41 - $ 93.41
$ 93.41
$ 93.41 - $ 93.41
$ 93.41
Available
Clk will be able to fulfill this within the lead time provided
Item will be shipped in Approx 15 business days.

Only 0 TownSteel CDC Series | Grade 1 Clutched Passage Lever US26D are available.

variantStock[40519200702553] = 0;
$ 93.41 - $ 93.41
SubTotal : $ 93.41
$ 93.41 - $ 93.41
SubTotal : $ 93.41

Description

This TownSteel CDC Series clutched passage lever is Grade 1 certified and offers maximum security. Durable yet lightweight, it is the ideal choice for commercial and residential settings. Its US26D finish ensures years of reliable and robust performance.

TownSteel CDC Series | Grade 1 Clutched Passage Lever US26D Specifications

  • Weight : 3.0 lb
  • Latch : Mortise Backset Included
  • Strike Plate : ASA Strike 1-1/4" Width x 4-7/8" Height
  • Grade : 1 (Heavy Duty)
  • Standards : ANSI/BHMA A 156.2 Grade 1 certified Series 4000 UL UL 1 0C 3-hour rated BAA Meets requirements of the Buy American Act ADA Meets requirements of the Americans with Disabilities Act
  • Keys : 2
  • Thru Bolt : Yes, Fixed
  • Warranty : 5 Year Mechanical Warranty
  • Cross Bore : 2-1/8"
  • Edge Bore : 1"
  • Handing : Universal, non-handing
  • Door Fitting : 1-3/8” ~ 2” door standard. Factory preset at 1-3/4”
  • Cylinder : Solid brass SC4 6-pin You can replace the cylinder with any K001 Cylinder
  • Clutch Function : Yes
  • Country Of Origin : Taiwan
  • Condition : New
  • Function : Passage
  • Finish : US26D
  • Download(s): Click to view Grade1_CDC_series_cutsheet.pdf
