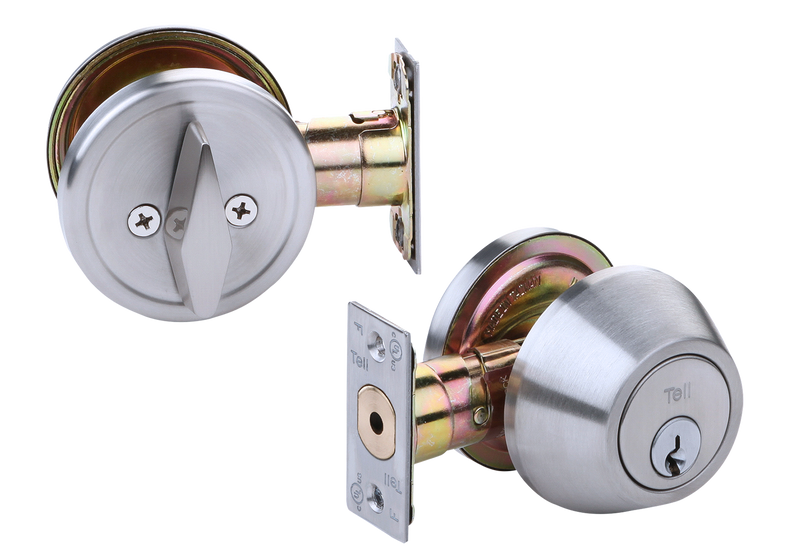

Tell Pro DB2000 Series Grade 2 Single Cylinder Deadbolt - US32D Finish
A commercial deadbolt that stands up to a saw. The Tell DB2000 Series single cylinder deadbolt throws a 1" stainless steel bolt with a hardened roller bar that spins against a hacksaw or reciprocating blade, so it's much harder to cut through the gap.
It’s ANSI Grade 2, rated to 150,000 cycles, and finished in US32D satin stainless steel (BHMA 630). The adjustable backset and standard 161 prep make it an easy add or replacement.
Why Pros Choose This Deadbolt
- Saw-resistant 1" throw. Roller bar defeats hacksaw and reciprocating saw attacks.
- ANSI/BHMA A156.5, Grade 2. Tested to 150,000 cycles.
- Adjustable backset. 2-3/8" or 2-3/4".
- Single cylinder. Key outside, thumbturn inside.
- Rekey-friendly cylinder. 6-pin solid brass, Schlage C keyway, can be pinned to 5-pin and master keyed.
- Two nickel silver keys included.
- Limited lifetime warranty from Tell Manufacturing.
Specifications
- Chassis: tubular, steel
- Bolt: 1" housing diameter, 1" x 2-1/4" faceplate
- Strike: 1-1/8" x 2-3/4", square corner
- Door thickness: 1-3/8" to 1-3/4"
- Door prep: 2-1/8" bore, 1" bolt hole, fits standard 161 prep
Ideal for: offices, storefronts, apartments, utility rooms, and any door that needs a keyed deadbolt above a passage or entry lever.
Equal To (Cross-Reference)
Tell lists this as equal to: Schlage B160, BC160, Hager 3200, Cal-Royal T300, Corbin DL2200, Falcon D200, Arrow DBX Series, Sargent 460, Design Hardware D2, PDQ KV & KM series, Yale D200 series.
FAQ
Can it be keyed to my existing Schlage keys?
Yes. It uses a Schlage C keyway cylinder that any locksmith can rekey to match.
Specifications
SKU#: TEL-CL110180
weight: 1.2 lb
Download(s):
Vendor: Tell Mfg.
Material:
Alternative Key:
Alternative Part Number(s):
Country of Origin:
Condition: New
Key Type:
Pin Diameter:
Pins Per Pack:
Pin Length:
Function: Deadbolt
Programing Instructions :
Code Series :
Buttons:
Emergency Key Included :
Chip :
Reusable :
Battery:
Test Key:
Chipless Key :
Dimensions :
Special Marking (s) :
Replacement Brush:
Replacement Cutters(s) :
Power Supply :
Warranty :
Feature(s) :
Keyway:
Strike Plate:
Standards:
Thru Bolt:
Cross Bore: 2-1/8"
Handing: Universal, non-handing
Latch:
Grade:
Keys: 2
Edge Bore: 1"
Door Fitting:
Clutch Function:
Finish: US32D
Cylinder:
