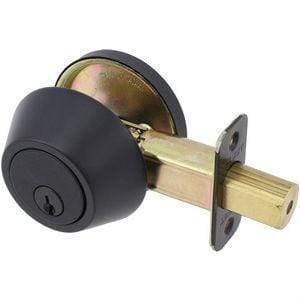

Advantage LM Series | Grade 1 Single Deadbolt | US10B

SKU#: PHG-LM200-US10B

weight: 5.89 lb

Download(s): Click to view Spec_Sheet_-_Advantage_LM_Series_Deadbolt.pdf

Vendor:  PHG

Material:

Alternative Key:

Alternative Part Number(s): 200LM-US10B

Country of Origin:

Condition: New

Key Type:

Pin Diameter:

Pins Per Pack:

Pin Length:

Function: Deadbolt

Programing Instructions :

Code Series :

Buttons:

Emergency Key Included :

Chip :

Reusable :

Battery:

Test Key:

Chipless Key :

Dimensions :

Special Marking (s) :

Replacement Brush:

Replacement Cutters(s) :

Power Supply :

Warranty : Lifetime Mechanical Warranty

Feature(s) :

Keyway:

Strike Plate: Standard deadbolt strike (9121), and 1/8” wood frame reinforcer package (9221)
ASA Deadbolt Strike optional (9109D)

Standards: ANSI Grade 1
ANSI/BHMA A156.5-2001
UL Listed 3 Hours Fire rating UL10C/UBC 7-2(1997)
Positive Pressure Rated
ADA Compliant ANSI A117.1 Barrier Free Accessibility
BHMA Certified
Hurricane Hardware Certified NOA No. 15-0629.03 +/- 90 PSF Florida Building Code: 20485

Thru Bolt:

Cross Bore:

Handing: Universal, non-handing

Latch: UL Listed
1” throw solid brass deabolt latch with hardened steel rod insert
2-3/4” backset: 1-1/8” x 2-1/4” faceplate mortise deadbolt latch (L9070TA)
2-3/8” backset: 1” x 2-1/4” faceplate mortise deadbolt latch (L9060TA)

Grade: 1 (Heavy Duty)

Keys: 2

Edge Bore:

Door Fitting: 1-9/16” ~ 2” door thick. 2-1/4” available

Clutch Function: No

Finish: US10B

Cylinder: Solid brass SC4 6-pins standard with black powder metallurgy cylinder housing
